Glass Fiber PPR Pipe Production Line

All Plastic Pipe Production Lines

Glass Fiber PPR Pipe Production Line

Glass Fiber PPR Pipe Production Line

As construction projects become more sophisticated and demands for performance grow, off-the-shelf piping systems may not be able to keep up—especially under high temperature or high pressure. By combining the polypropylene random copolymer (PPR) with glass fiber, these pipes offer enhanced structural integrity, better thermal performance, and little if any linear expansion.

To make such a technically demanding product in volume, you need more than a average extrusion facility. You need precisely engineered production lines capable of delivering synchronized multi-layer co-extrusion. That is exactly what we offer.

Three-Layer Co-Extrusion for Stronger Pipes

Our PPR-GF pipe extrusion lines are carefully manufactured to exacting standards. Fully dedicated three-layer co-extrusion technology, they enable us to accurately dose the inner PPR layer, the glass fiber reinforcing middle layer, and the outer protective PPR layer—all in perfect harmony.

Here are some of the key characteristics of our system:

  • Exact material dosing in all three layers
  • Rock-solid melt pressure and temperature control
  • High-precision ovality and wall thickness control
  • Perfectly even layer bonding with no danger of delamination

The result? Durable composite pipes that perform optimally under stress, provide long service life, and conform to international plumbing and heating standards.

Ideal for High-Performance Plumbing and Heating Applications Glass fiber reinforced PPR pipes are ideally designed for use in applications requiring improved pressure resistance and dimensional stability—like:

  • High-rise residential and office buildings
  • Industrial fluid transportation systems
  • Central and district heating installations

Our extrusion system benefits these markets by providing manufacturers with the rate of output, repeatability, and quality control to stay competitive and regulatory compliant.

Adjustable, Versatile Production to Meet Your Market

Our PPR-GF pipe production lines support pipe diameters from 20 mm to 160 mm with capacity for SDR 6 to SDR 11 classes and special versions. Other modules can be integrated into your system, such as:

  • Stripe co-extrusion units for marking
  • Laser marking systems
  • UV protection and surface treatments

Our series is compact, energy conserving, and features quick changeovers, with high uptime and flexibility to react to the changing nature of market demand.

Why Choose Our PPR-GF Pipe Extrusion Technology?

From raw material feeding through to finished pipe, our glass fiber reinforced PPR pipe lines are engineered to make each layer pay, every time.

Glass Fiber PPR Pipe Production Line

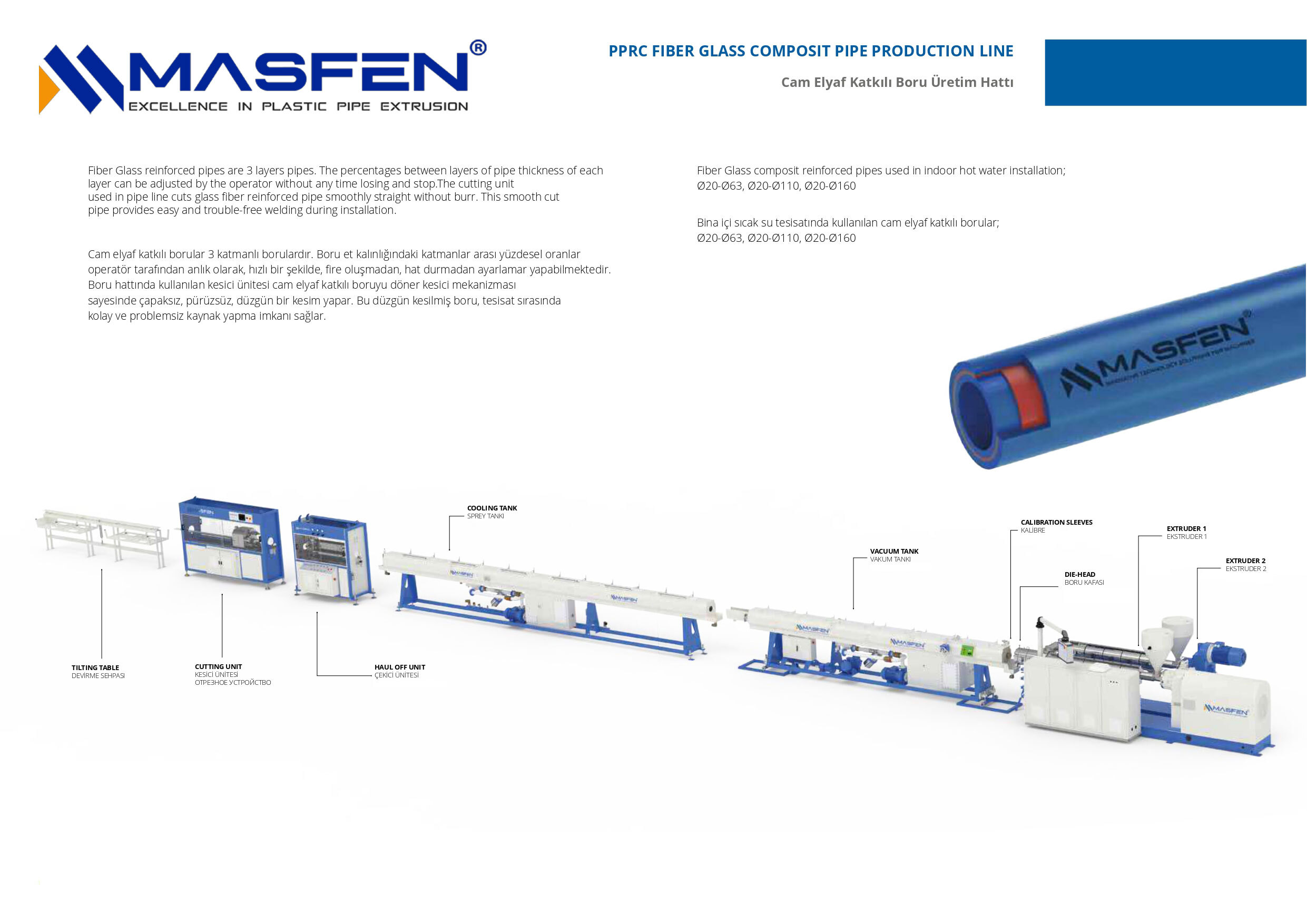

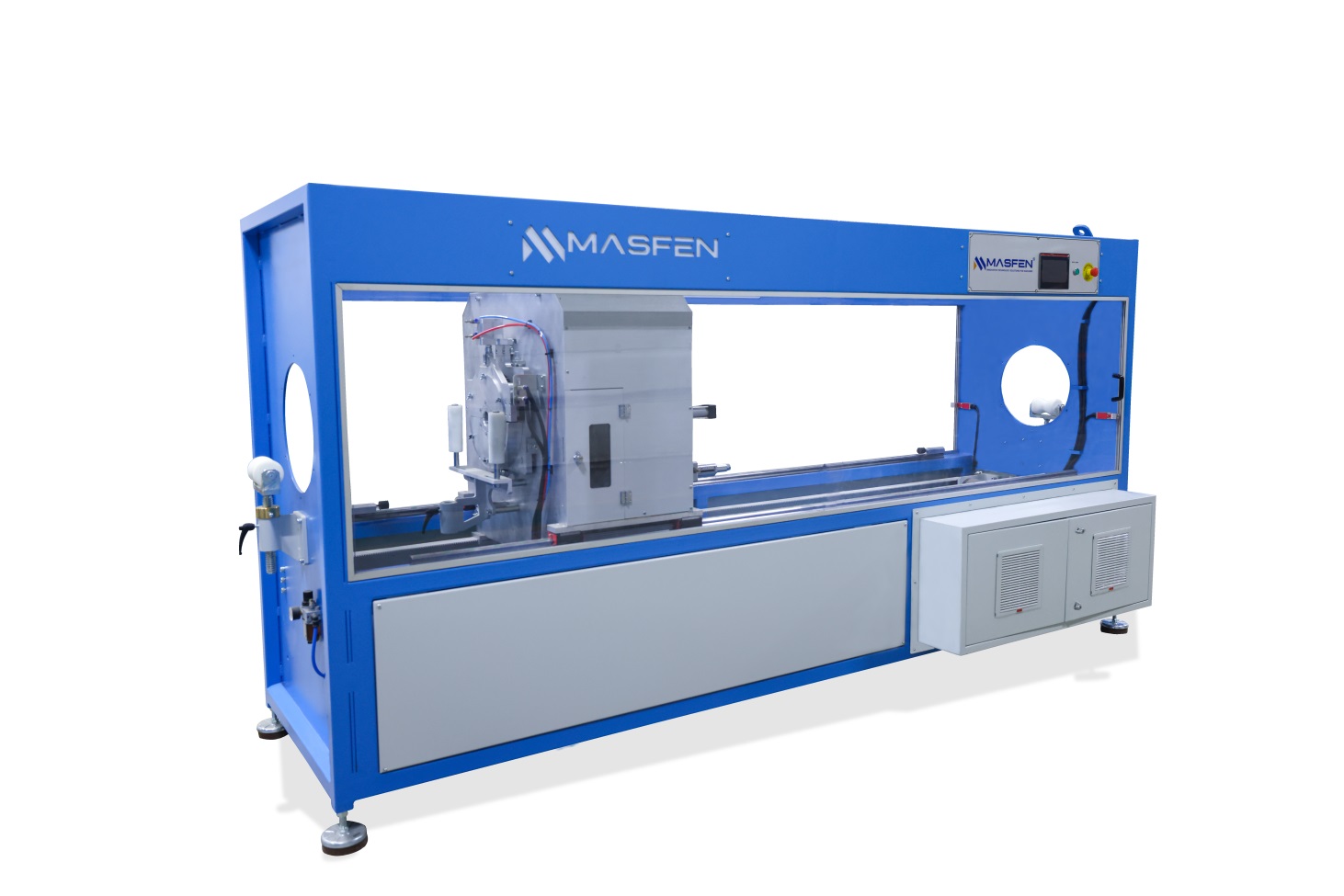

Cam elyaf katkılı borular 3 katmanlı borulardır. Boru et kalınlığındaki katmanlar arası yüzdesel oranlar operatör tarafından anlık olarak, hızlı bir şekilde, fire oluşmadan, hat durmadan ayarlamaları yapılabilmektedir. Boru hattında kullanılan kesici ünitesi cam elyaf katkılı boruyu döner kesici mekanizması sayesinde çapaksız, pürüzsüz, düzgün bir kesim yapar. Bu düzgün kesilmiş boru, tesisat sırasında kolay ve problemsiz kaynak yapma imkanı sağlar.

General FAQ's

Masfen Machinery plastic extrusion machinery serves a wide range of sectors, including telecommunications (microduct), agricultural irrigation (drip irrigation pipes), infrastructure (HDPE water and gas pipes), and domestic plumbing (PPR/PEX). As an extrusion line manufacturer, our solutions are engineered to comply with global industrial standards.

The core difference that sets Masfen Machinery apart is our focus on long-term reliability and "human-centered" engineering, rather than just competing on price. Additionally, we provide many equipments and features that simplify operations as standard factory inclusions, rather than costly optional add-ons.

A standard pipe production line installation typically takes 5 to 10 business days. This timeframe includes mechanical assembly, electrical wiring, final calibration for optimal output quality and comprehensive training.

Yes, we provide comprehensive turnkey extrusion solutions. This package covers everything from factory layout design and auxiliary equipment integration to full-scale operator training.

Yes, all technical specifications such as specialized co-extrusion configurations for multi-layer pipes, specific automation software, or custom cooling systems for high-speed lines are optimized according to our clients' specific needs.

All our machinery is manufactured in strict accordance with CE safety regulations and ISO 9001:2015 quality management standards.

Yes, our machines are equipped with Industry 4.0-ready PLC systems that allow for secure remote diagnostics and intervention. Our technical team can troubleshoot software issues and update parameters in real-time.

Installation & Support FAQ (Conversion SEO)

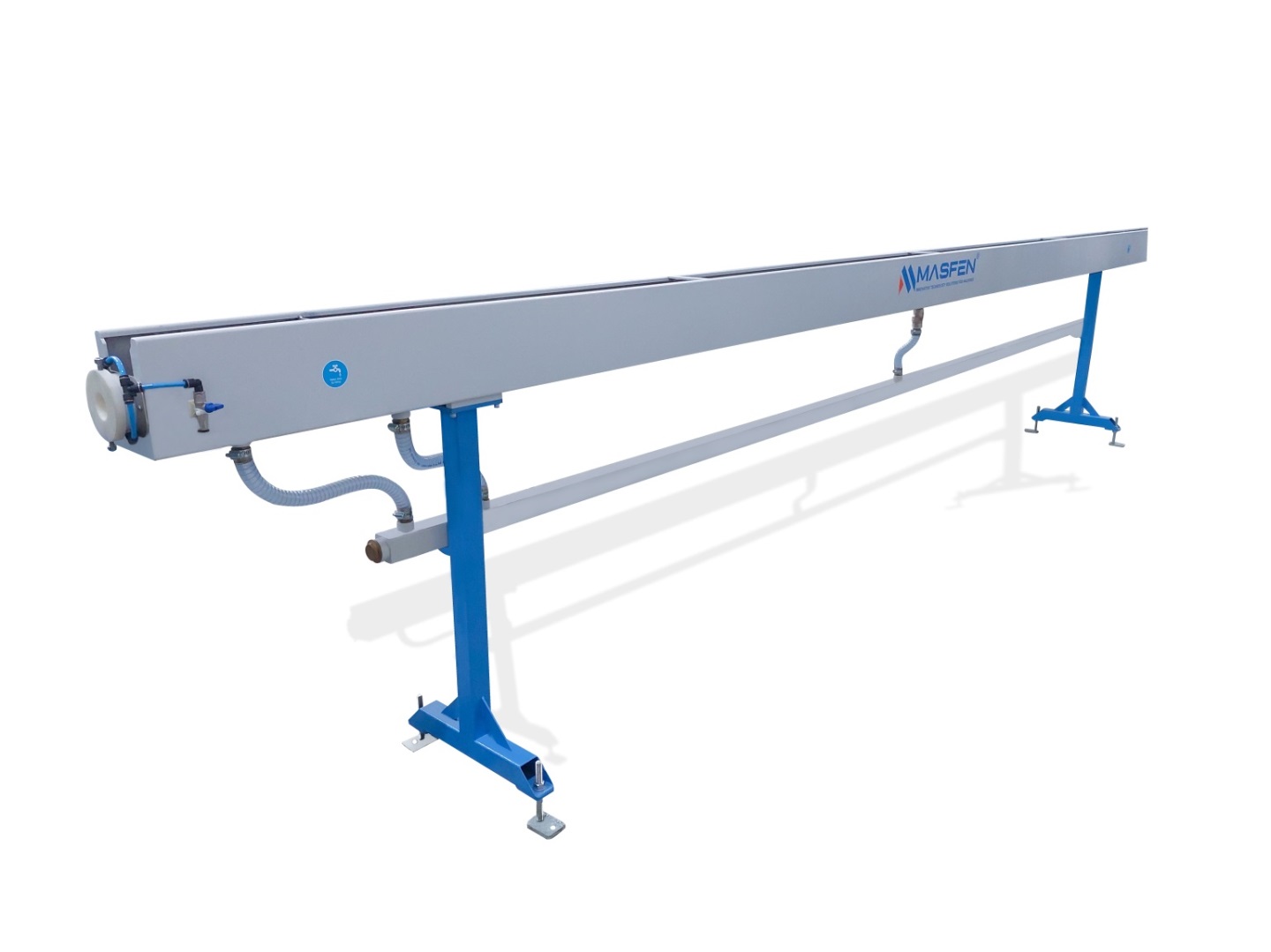

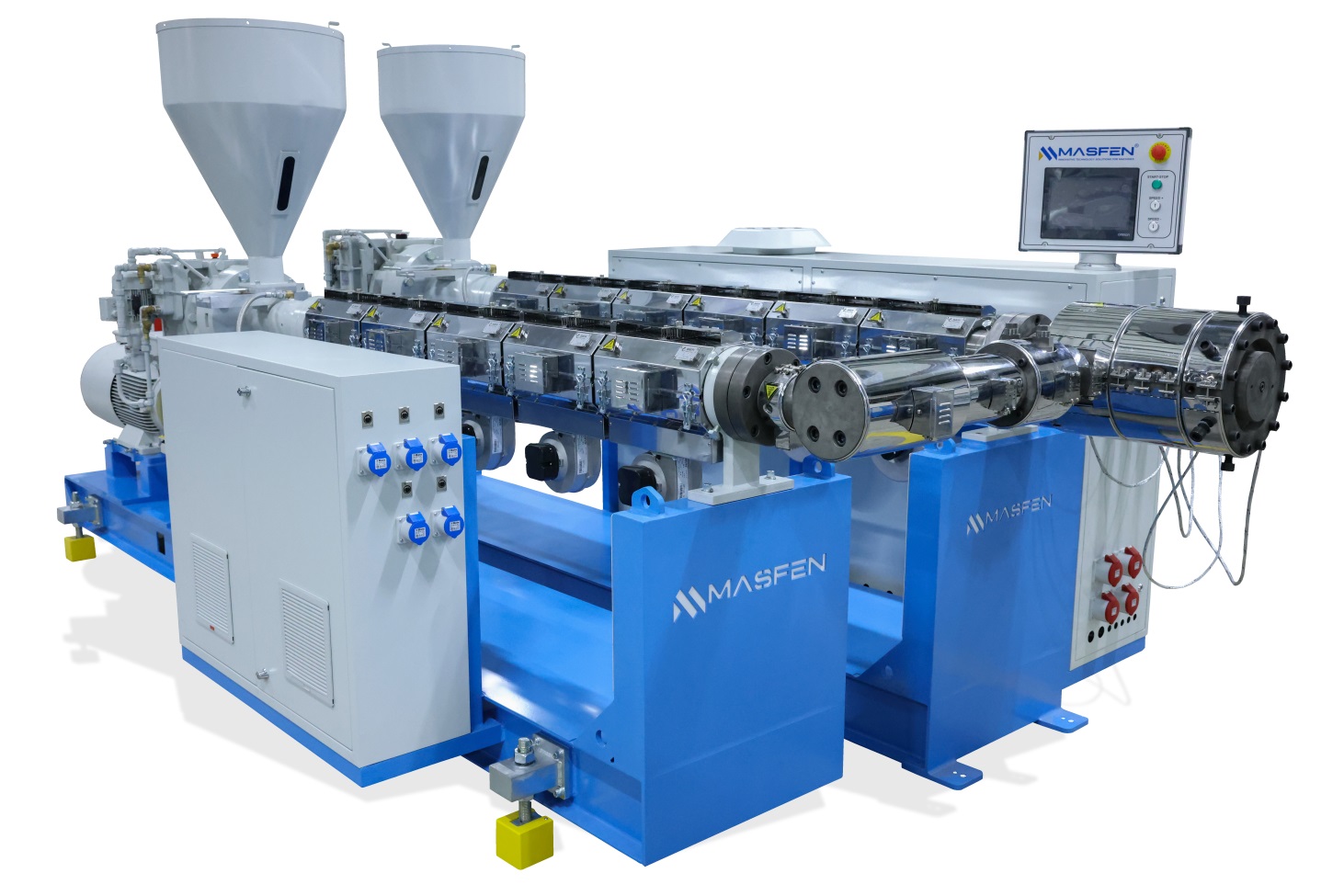

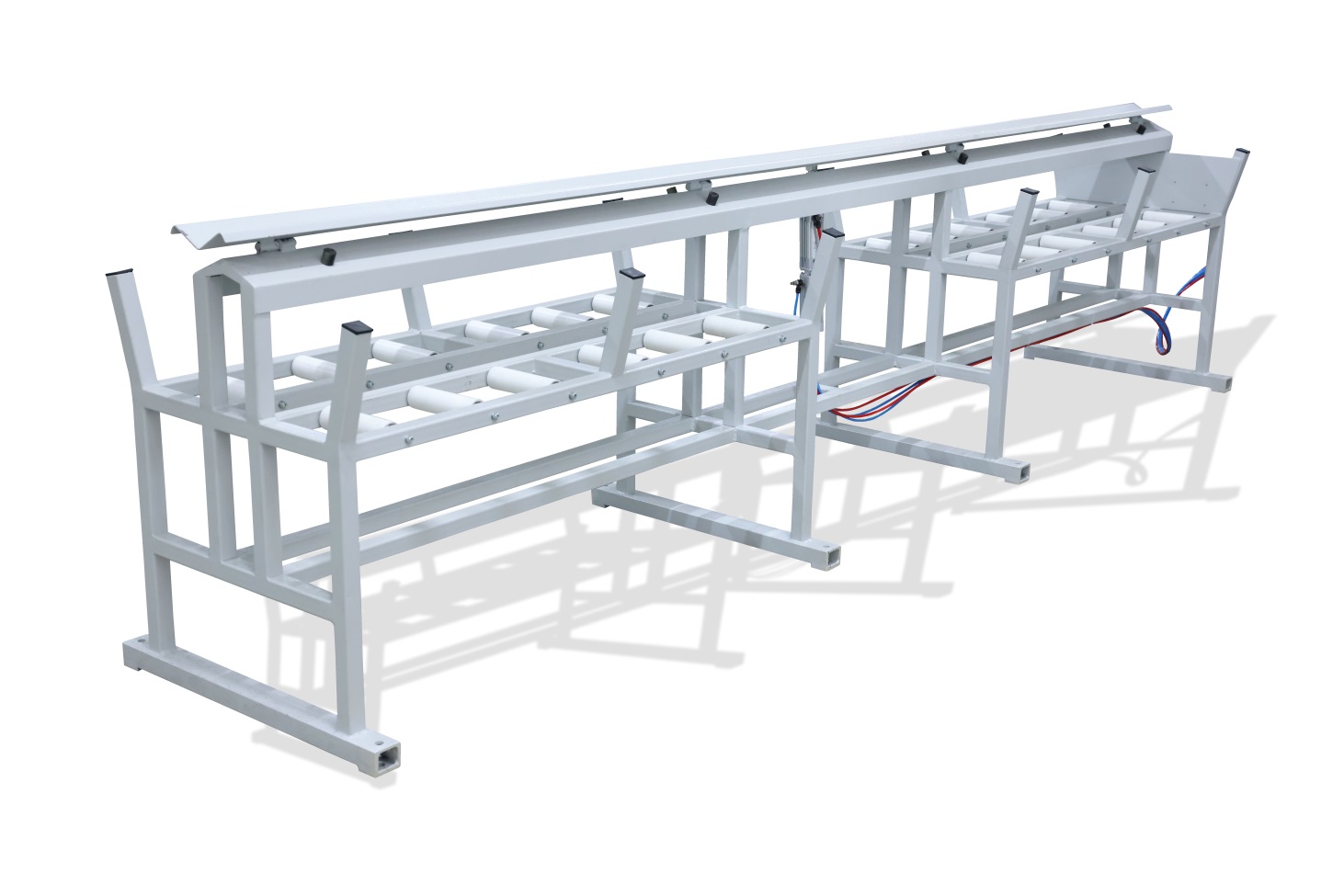

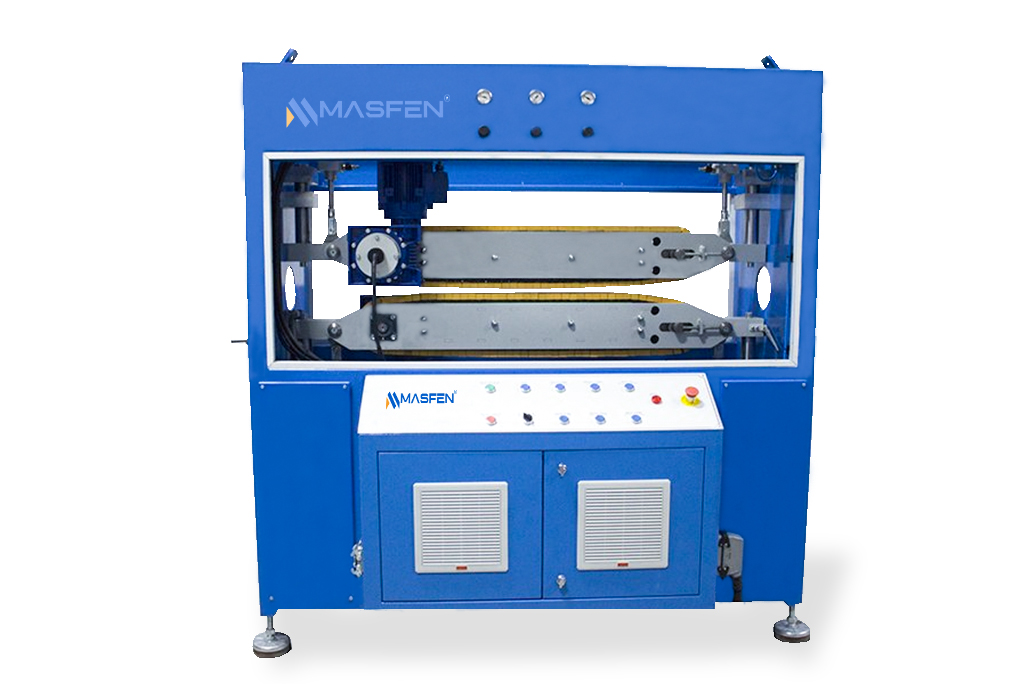

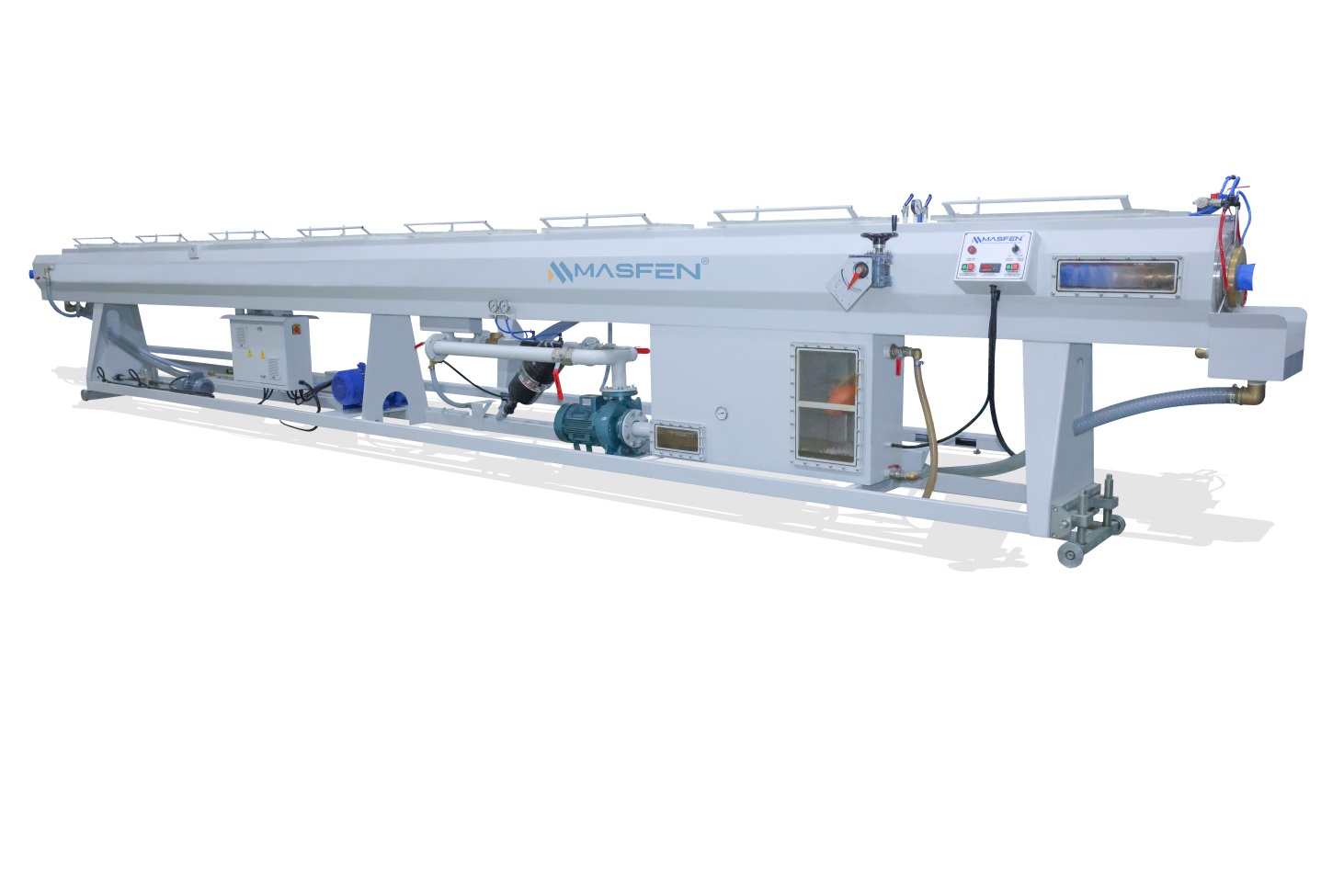

Our turnkey production line package includes the extruder, die-head group, vacuum and cooling tanks, haul-off, cutter, and tilting table, plus all necessary auxiliary units such as chillers, air compressors, and hopper loaders.

Yes, we provide hands-on operator training at your facility following the installation. The training covers safety protocols, material start-up, parameter adjustments, and daily maintenance procedures.

Yes, we offer machine upgrade services to modernize older systems. We can replace traditional control panels with modern PLC systems or integrate co-extruders into existing lines to enable multi-layer production.
